Description
Blind Grommet A Type 2
Technigro has an extensive package of blind grommets. In addition, we can tailor the blind grommets to your desired color. The blind grommets are available in various rubber qualities such as: SBR, CR, NBR, EPDM, CSM, FPM and SI.
Minimum purchase: approximately 1,000 pieces.

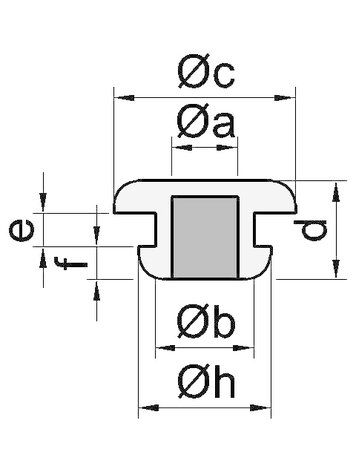

Drawings
Drawings
Articles
Articles
| Code | Product | A | B | C | D | E | F | H | G | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RV305 | Blind grommet 15x18x30x10x1x4x8.5x24 type 2 | 15 | 18 | 30 | 10 | 1 | 4 | 24 | 8,5 | Offerte |
| RV410 | Blind grommet 17x21x27x7x2x2x5.5x25 type 2 | 17 | 21 | 27 | 7 | 2 | 2 | 25 | 5,5 | Offerte |
| RV3958 | Blind grommet 17x25x33x12x6x2x9x26 type 2 | 17 | 25 | 33 | 12 | 6 | 2 | 26 | 9 | Offerte |
| RV3549 | Blind grommet 20x26x36x8x2x2x6x30 type 2 | 20 | 26 | 36 | 8 | 2 | 2 | 30 | 6 | Offerte |
| RV3268 | Blind grommet 3x7.5x12x9x3x3x6.5x9 type 2 | 3 | 7,5 | 12 | 9 | 3 | 3 | 9 | 6,5 | Offerte |
| RV3731 | Blind grommet 4x6x12x6.5x1.5x2.5x3x8 type 2 | 4 | 6 | 12 | 6,5 | 1,5 | 2,5 | 8 | 3 | Offerte |
| RV3417 | Blind grommet 5x8x12x6.2x1.2x2.5x3x11 type 2 | 5 | 8 | 12 | 6,2 | 1,2 | 2,5 | 11 | 3 | Offerte |
