Buffers A Self locking Type 2
Self-locking buffers are suitable for a wide variety of applications. In addition to the package of standard buffers with self-locking, we can also produce these buffers for you in the desired color. The required rubber quality is determined together with our product adviser.
Minimum purchase: approximately 1,000 pieces.

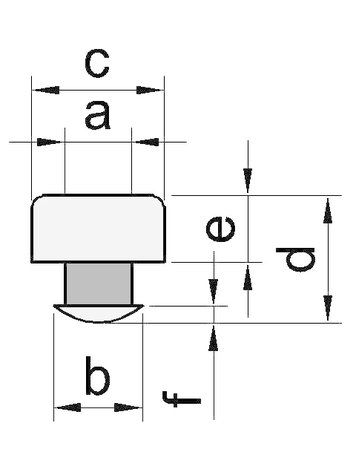

Drawings
Articles
| Code | Product | Type | A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|---|---|---|
| RVB3330 | Inst. Buffer a selfb. 10x14x26x17x10x3 type 2 | 2 | 10 | 14 | 26 | 17 | 10 | 3 | Offerte |
| RVB2582 | Inst. Buffer a selfb. 15.5x8x29.5x8.5x3x2 type 2 | 2 | 15,5 | 18 | 29,5 | 8,5 | 3 | 2 | Offerte |
| RVB2582 EPDM | Inst. Buffer a selfb. 15.5x8x29.5x8.5x3x2 type 2 epdm | 2 | - | - | - | - | - | - | Offerte |
| RVB963 | Inst. Buffer a selfb. 4x5x6x6x2x2 type 2 | 2 | 4 | 7 | 12 | 15 | 6,5 | 4 | Offerte |
| RVB3488 | Inst. Buffer a selfb. 5.5x12x8.5x7x1.5x2.5 type 2 | 2 | 5,5 | 12 | 8,5 | 7 | 1,5 | 2,5 | Offerte |
| RVB3848 | Inst. Buffer a selfb. 6x7x10x11x2x2 type 2 | 2 | 6 | 7 | 10 | 11 | 2 | 2 | Offerte |
| RVB5801 | Inst. Buffer a selfb. 6x8x10x6x2x2.5 type 2 | 2 | 6 | 8 | 10 | 6 | 2 | 2,5 | Offerte |
| RVB5549 | Inst. Buffer a selfb. 8x12x18x6x1.5x3 type 2 | 2 | 8 | 12 | 18 | 6 | 1,5 | 3 | Offerte |
| RVB3656 | Inst. Buffer a selfb. 8x13x18x9x2x2 type 2 | 2 | 8 | 13 | 18 | 9 | 2 | 2 | Offerte |
| RVB5542 | Inst. Buffer a selfb. 8x9x12x9.5x4x1.5 type 2 | 2 | 8 | 9 | 12 | 9,5 | 4 | 1,5 | Offerte |
| RVB5796SBR | Inst. Buffer a selfb. sbr 6x8x12x8.5x2x4 type 2 | 2 | - | - | - | - | - | - | Offerte |
| RVB448SBR | Inst. Buffer a selfb. sbr 7x17x11x8x2x3.5 type 2 | 2 | - | - | - | - | - | - | Offerte |
