Buffers A Self-Locking Type 5
Self-locking buffers are suitable for a wide variety of applications. In addition to the package of standard buffers with self-locking, we can also produce these buffers for you in the desired color. The required rubber quality is determined together with our product adviser.
Minimum purchase: approximately 1,000 pieces.

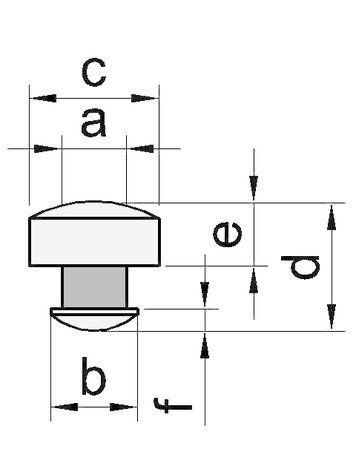

Drawings
Articles
| Code | Product | Type | A | B | C | D | E | |
|---|---|---|---|---|---|---|---|---|---|
| RVB3250 | Inst. Buffer a selfb. 10x12x20x13x8x2 type 5 | 10 | 12 | 20 | 13 | 8 | 2 | Offerte |
| RVB5762 | Inst. Buffer a selfb. 16x20x20x6.5x2x1.5 type 5 | 16 | 20 | 20 | 6,5 | 2 | 1,5 | Offerte |
| RVB1636 | Inst. Buffer a selfb. 4.5x5.5x8x6x2.5x2.5 type 5 | 4,5 | 5,5 | 8 | 6 | 2,5 | 2,5 | Offerte |
| RVB5304 | Inst. Buffer a selfb. 4.5x6.5x7.5x7x2.8x1.5 type 5 | 4,5 | 6,5 | 7,5 | 7 | 2,8 | 1,5 | Offerte |
| RVB11195 | Inst. Buffer a selfb. 4x5x8x5.5x2.5x2 type 5 | 4 | 5 | 8 | 5,5 | 2,5 | 2 | Offerte |
| RVB272 | Inst. Buffer a selfb. 6x10x11x9.5x2x5 type 5 | 6 | 10 | 11 | 9,5 | 2 | 5 | Offerte |
| RVB272 FPM | Inst. Buffer a selfb. 6x10x11x9.5x2x5 type 5 viton | 6 | 10 | 11 | 9,5 | 2 | 5 | Offerte |
| RVB5534 | Inst. Buffer a selfb. 6x7.5x16x4x1.5x1 type 5 | 6 | 7,5 | 16 | 4 | 1,5 | 1 | Offerte |
| RVB4001 | Inst. Buffer a selfb. 6x8x10x12x8x3 type 5 | 6 | 8 | 10 | 12 | 8 | 3 | Offerte |
| RVB3114 | Inst. Buffer a selfb. 7.2x9x10x10.5x5.5x 2.5 type 5 | 7,2 | 9 | 10 | 10,5 | 5,5 | 2,5 | Offerte |
| RVB3973 | Inst. Buffer a selfb. 8x11x14x6.5x2x2.5 type 5 | 8 | 11 | 14 | 6,5 | 2 | 2,5 | Offerte |
| RVB3651 | Inst. Buffer a selfb. 8x11x14x9x4.5x2.5 type 5 | 8 | 11 | 14 | 9 | 4,5 | 2,5 | Offerte |
| RVB2576EPDM | Inst. Buffer a selfb. epdm 9x12x15x10x6x2 type 5 | - | - | - | - | - | - | Offerte |
| RVB5405SBR | Inst. Buffer a selfb. sbr 5x7x9x9x6x2 type 5 | - | - | - | - | - | - | Offerte |
| RVB2576SBR | Inst. Buffer a selfb. sbr 9x12x15x10x6x2 type 5 | - | - | - | - | - | - | Offerte |
