Scraper belt conveyor

Scraper belt conveyor

The scraper belt conveyor (take-away chain) is very suitable for transporting fine small chips that are created during machining of blasting and cast iron. In addition, a special version is available for the removal of aluminum chips. The chips are hereby separated from the coolant.

The scraper belt conveyor is made on the basis of the dimensions specified by you and (optionally) in the desired color. If desired, the scraper belt can be moved.

In addition, the scraper belt conveyor is optionally available with:

- Refrigerant reservoir;
- Pump;
- Filter installation;
- Switch box including emergency stop.

Dimensions
In the drawing you will find an overview of all dimensions that you can determine as you wish.

The scraper belt conveyor (take-away chain) is very suitable for transporting fine small chips that are created during machining of blasting and cast iron. In addition, a special version is available for the removal of aluminum chips. The chips are hereby separated from the coolant.

The scraper belt conveyor is made on the basis of the dimensions specified by you and (optionally) in the desired color. If desired, the scraper belt can be moved.

In addition, the scraper belt conveyor is optionally available with:

- Refrigerant reservoir;
- Pump;
- Filter installation;
- Switch box including emergency stop.
- Dimensions

In the drawing you will find an overview of all dimensions that you can determine as you wish.

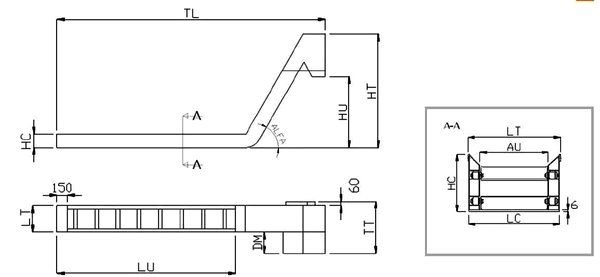

LC = Width of the carrier.
HU = dumping height.
HT = Total height.
TL = Total length.
Alfa = Head angle (between 30 and 60 degrees).
DM = Side width of the motor housing.
HM = Height of the motor cabinet.
LU = Pour length.
AU = Dump width.
LT = Total width incl. Cover profile.
HC = Height of the carrier.
